Button Head Injection Packers
Button head injection packers provide a larger internal passage and optimized material flow.
Your Trusted Button Head Injection Packers Supliers in China
Button Head Injection Packer is a kind of specialized injection port, it is designed to connect injection pumps, allowing quick coupling with sliding coupler or button head adapters, ensuring reliable connection during demanding injection operations.
The button head structure provides a larger internal passage and optimized material flow, allowing chemical grouting materials to move efficiently through the packer into structural voids or fissures.
These kinds of packers are commonly made of steel, aluminum, or plastic. So the contractor or builder can choose different packers according to their needs.
Because of their strong connection system and efficient flow characteristics, button head injection packers are widely used in injection grouting, waterproofing, crack sealing, and structural repair applications
We supply a wide range of button head packers in different sizes and materials. Customized packers and related accessories are also available according to specific project requirements.
Button Head Injection Packers Featured Products
16mm Flat-head Packers

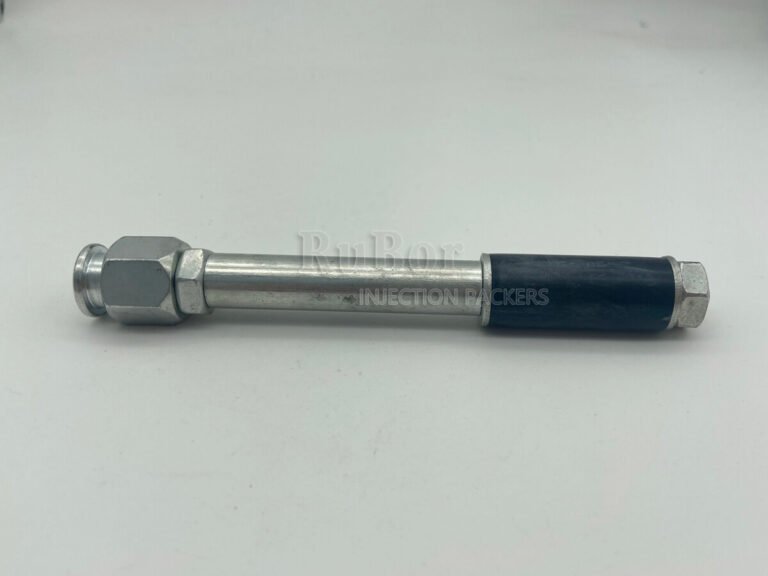

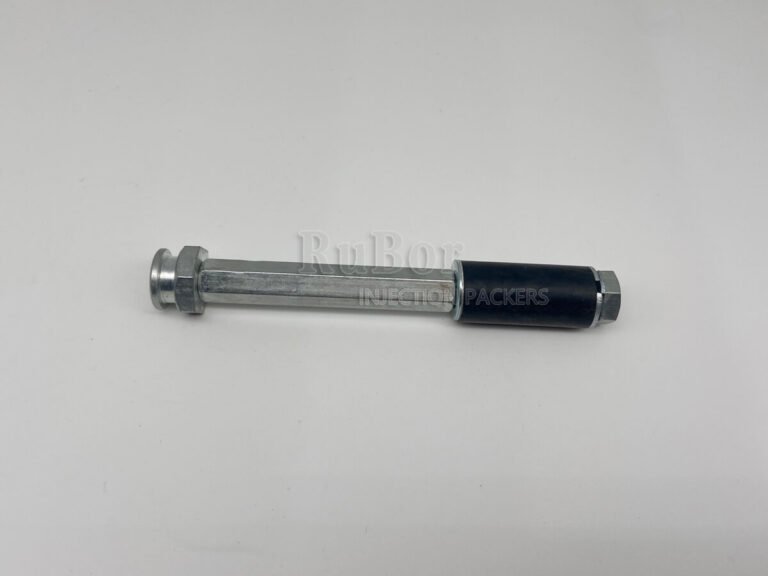

16mm Button Head Packers

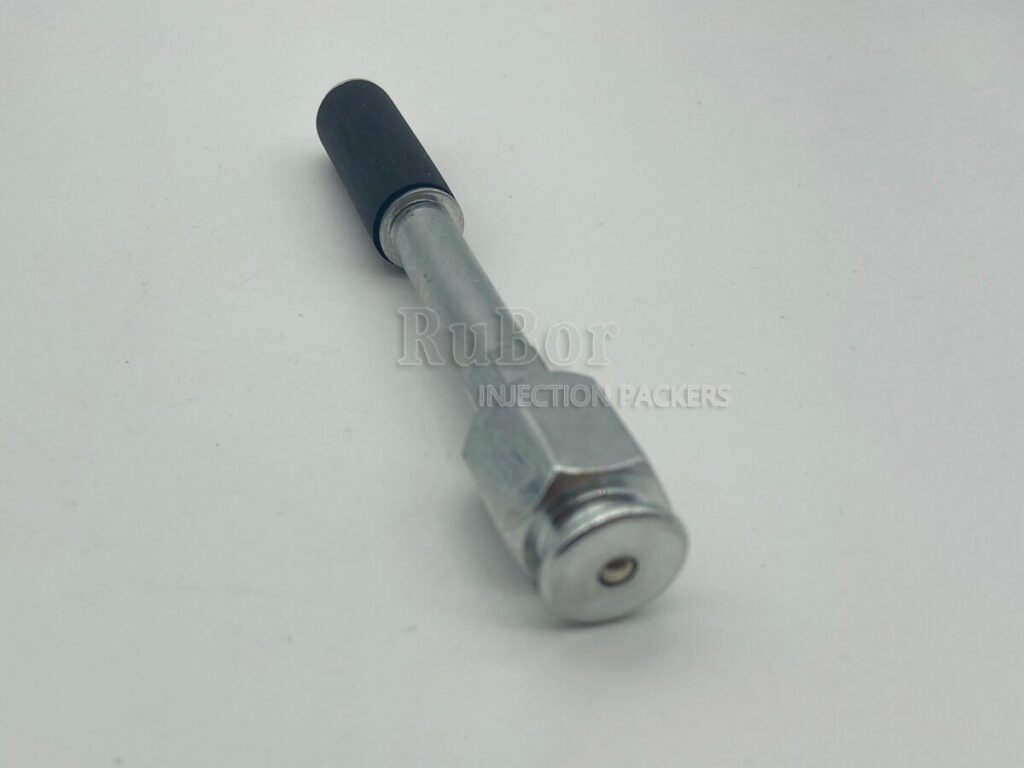

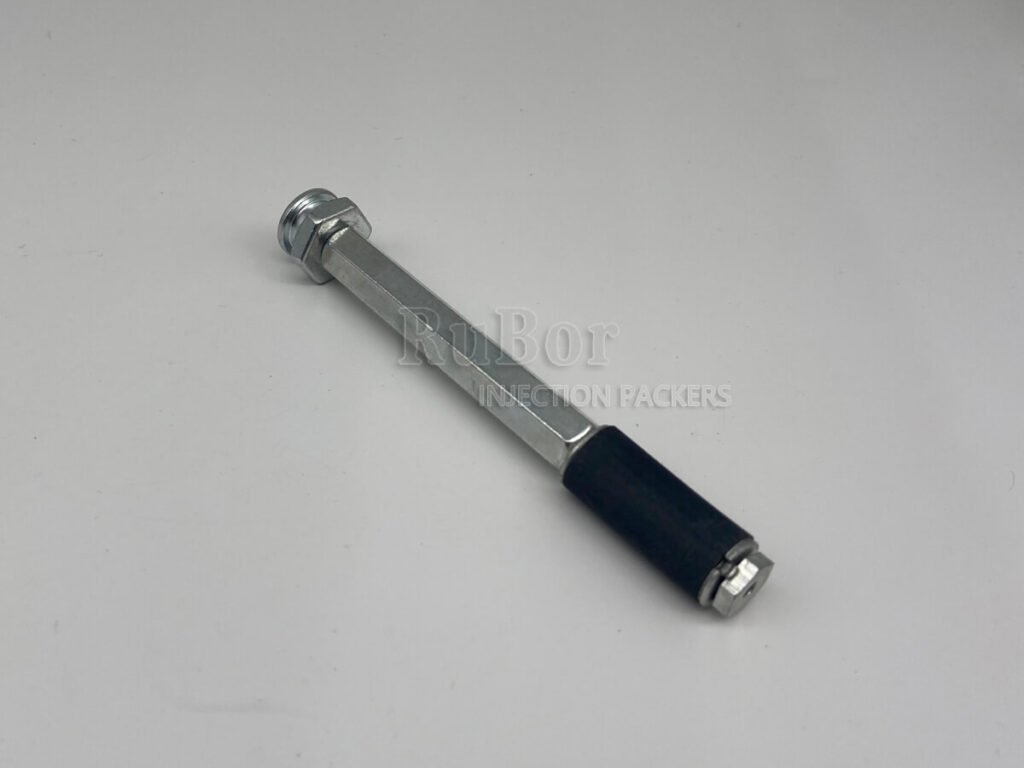

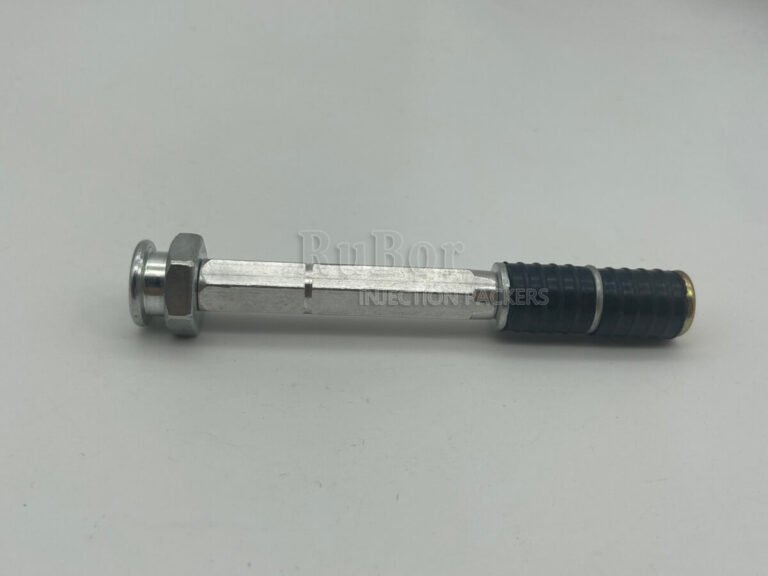

13 mm Button Head Packers

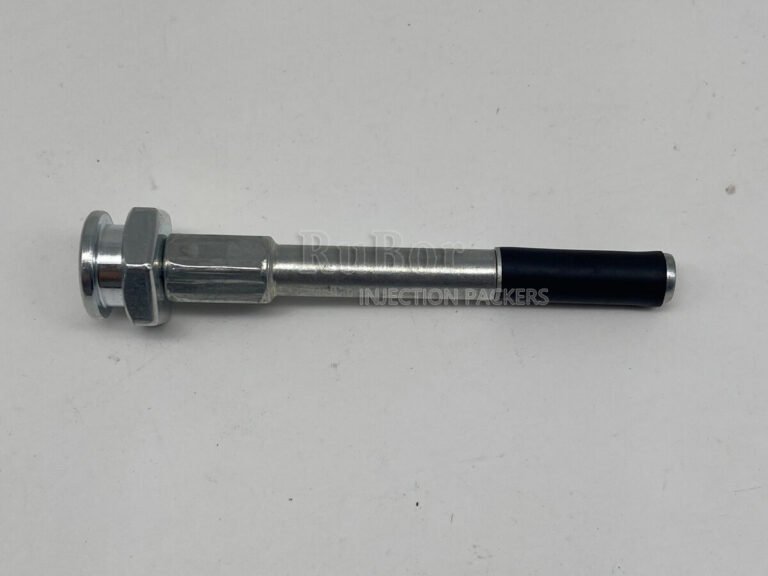

8mm Button Head Steel Packers

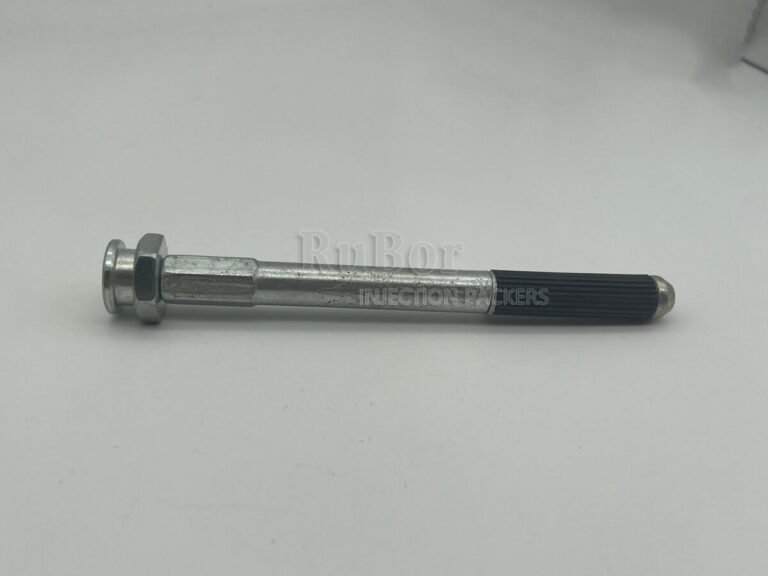

10mm Flat Head Packers

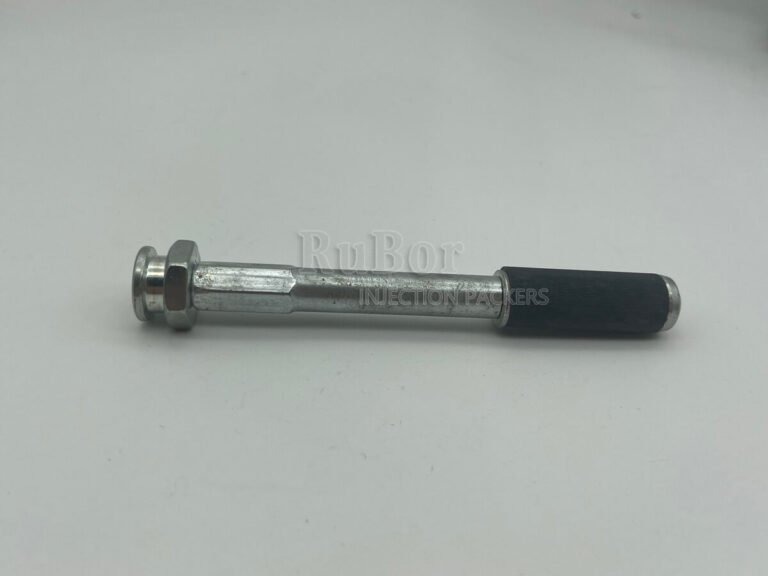

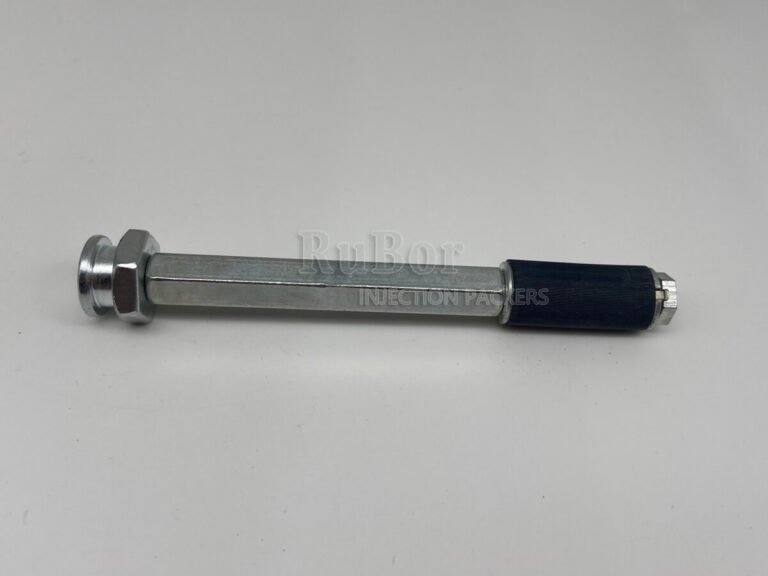

13mm Flat Head Packers
13mm Flat Head Packers
13mm Flat Head Aluminum Packers
Button Head Injection Packers Application
Button-head packers are designed for projects where stable equipment connection and efficient material transfer are critical. Typical uses include:
- Structural Rehabilitation- Used for restoring aging concrete elements by delivering grouting materials into internal defects, helping restore integrity and durability.
- Curtain Injection- Suitable for curtain injection operations where sealing barriers are created behind structural elements to stop moisture migration.
- Underground Infrastructure Maintenance -Applied in maintenance works for underground engineering structures.
- Industrial Facility Maintenance- Frequently used in large industrial floors, machinery foundations, and heavy-load concrete structures.
- Water Retaining Structure Repair- Used in reservoirs, treatment plants, and hydraulic structures.
Button Head Injection Packers Technical Data
| Diameter | Length | Mateial |
| 8mm | 90mm | Steel |
| 10mm | 100mm / 120mm / 150mm / | Aluminum / Steel |
| 13mm | 100mm / 120mm / 150mm / | Steel |
| 16mm | 120mm / 150mm | Steel |
| 18mm | 170mm / 300mm / 500mm / 600mm / 900mm | |
| 25mm | 300mm / 500mm / 600mm / 900mm |
Button Head Injection Packers Advantages
Fast and Secure Coupling System
Allows quick connection with sliding couplers, ensuring a reliable connection during injection grouting.
High-Pressure Resistance
Built to perform reliably in high-pressure concrete crack injection.
Smooth Material Flow
Optimized internal passage ensures efficient delivery of grout during waterproofing repair.
Available in Multiple Materials and Sizes
Offered in steel, aluminum, and plastic to suit different injection grouting needs.
Suitable for PU and Epoxy Injection
Compatible with PU and epoxy resins for concrete crack repair and sealing.
Related Products
6mm Brass Injection Packers
Submit a Quick Quote
FAQS
We are here to help you. If you can not find the solutions, welcome contact us via online service or send an email to us.
1.What advantages do button head injection packers offer over flat head packers?
They provide quick grease-coupler connections, reliable sealing, and efficient injection for PU or epoxy.
2. Can button head packers be used for both PU and epoxy injections?
Yes, compatible with various chemical grouts, especially in medium- to high-pressure applications.
