Mechanical vs Surface Injection Packers

Home » Mechanical vs Surface Injection Packers

Introduction

Mechanical and surface injection packers differ in installation method, injection depth, and pressure delivery. Mechanical packers are installed into drilled holes, creating an internal pressure-sealed pathway that enables deep, high-pressure grout injection for structural crack repair and long-term waterproofing. In contrast, surface packers are mounted externally without drilling and rely on surface adhesion, making them suitable for shallow cracks, low-pressure injection, and temporary sealing. In most professional grouting applications, mechanical packers are preferred due to their superior penetration, sealing performance, and durability.

The Real Difference Is Not Installation—It’s Injection Physics

Most articles compare packers based on installation(drill vs no drill).
But from an engineering perspective, the real difference is:

Mechanical packers are installed inside drilled holes and expanded using a rubber sleeve.

According to industry systems:

Rubber sleeve expands against borehole wall
Creates a pressure-tight seal inside concrete。

This enables:

Direct injection into crack network
Pressure transfer deep into the structure
Controlled flow path

Result:
Injection is driven FROM INSIDE the structure

Surface Packers→External Pressure System

Surface packers are bonded to the surface using adhesives.

Injection occurs:

From outside the structure
Through surface entry points

Limitation:

Pressure dissipates before reaching the crack depth
Adhesion becomes the weakest point

Result:
Injection is driven FROM OUTSIDE the structure.

Why Choosing the Right Injection Packer Matters

In crack injection and waterproofing systems, selecting the correct packer type directly impacts:

Grout penetration depth
Sealing effectiveness
Injection pressure control
Long-term durability

👉 Choosing the wrong packer can lead to:

Incomplete crack filling
Surface-only sealing
Recurring leakage
Increased repair costs

To understand the full system, explore our Injection Packers and Crack Injection Solutions pages.

Mechanical vs Surface Packers (Technical Comparison)

Feature	Mechanical Packers	Surface Packers
Installation	Drilled into structure	Surface-mounted
Injection Path	Internal (direct access)	External (surface entry)
Pressure Resistance	High	Low
Injection Depth	Deep	Shallow
Sealing Mechanism	Expansion inside concrete	Adhesive bonding
Durability	Long-term	Temporary / medium-term
Reusability	❌ No (industry standard)	❌ No

Important Industry Fact:
All injection packers are disposable in professional grouting. Reuse can cause sealing failure and pressure loss

How Mechanical Injection Packers Work

Mechanical packers are inserted into pre-drilled holes and expanded using an internal rubber sleeve.

👉 This creates:

Tight internal sealing
Direct access to crack depth
Controlled high-pressure injection

Result:
Deep penetration + structural sealing performance

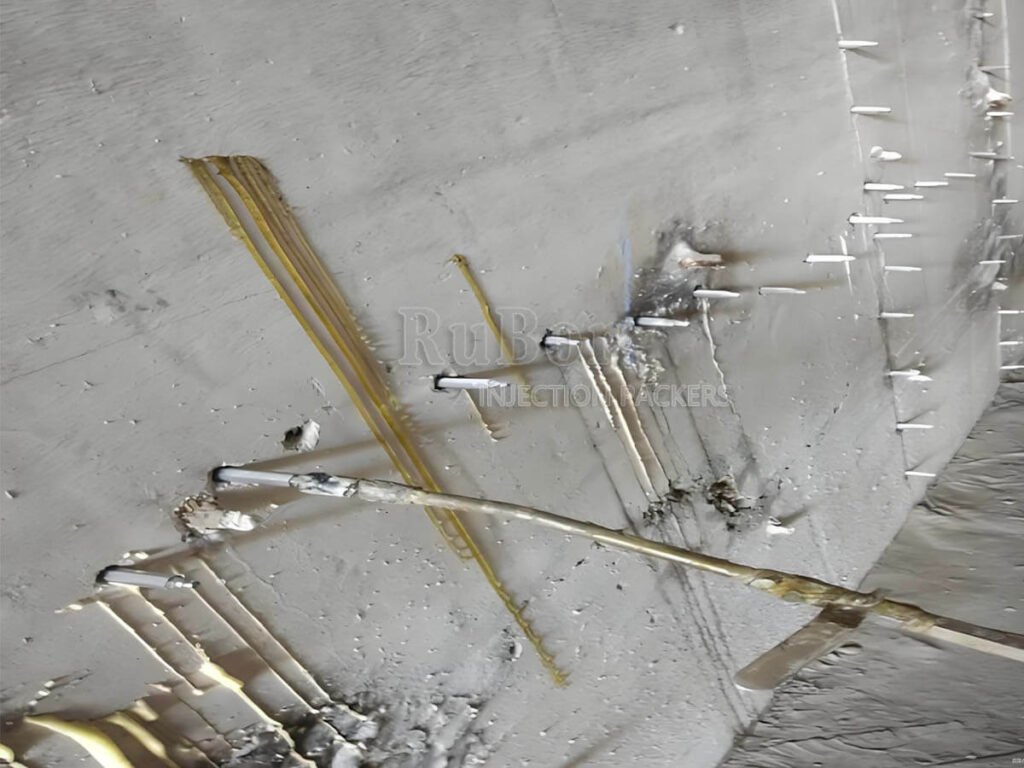

Steel packers for high pressure injection

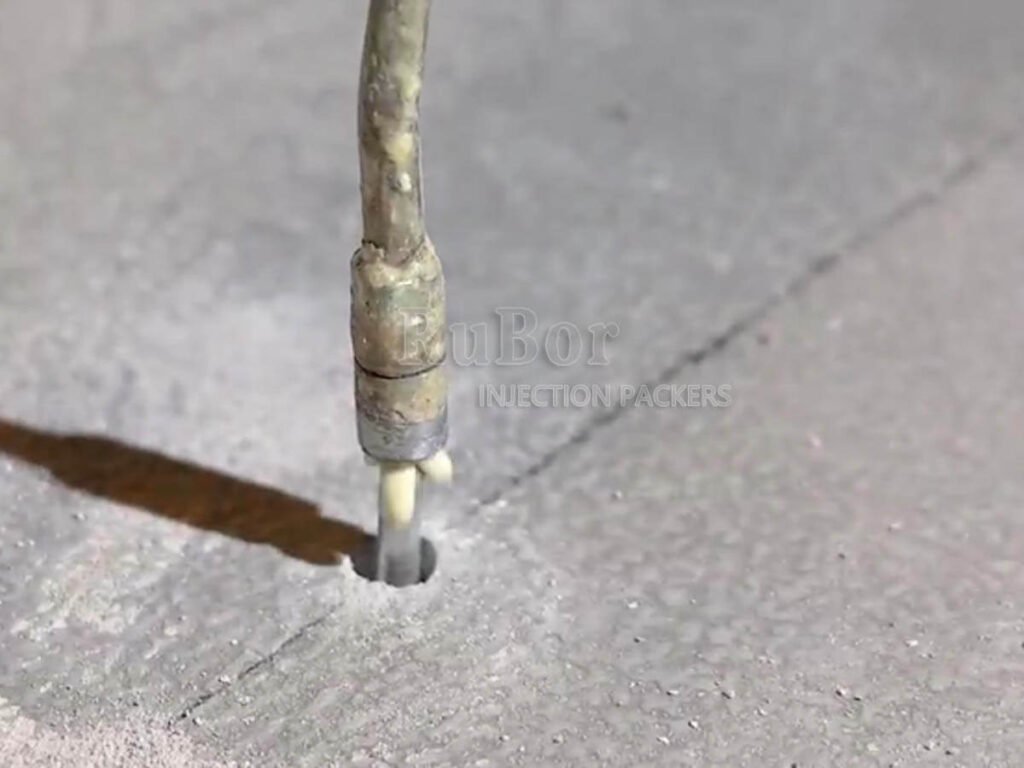

Crack Injection Application

How Surface Injection Packers Work

Surface packers are fixed directly onto the crack surface using sealants or adhesives.
Injection occurs:
- From outside the structure
- Through surface-level channels
Result:
Shallow penetration + surface sealing

Performance Comparison in Real Projects

Mechanical Packers

✔ Deep grout penetration
✔ High-pressure capability
✔ Suitable for structural repairs
✔ Ideal for PU and epoxy injection

Surface Packers

✔ Fast installation
✔ No drilling required
✔ Lower setup cost

❌ Limitations:

- Limited depth
- Lower sealing strength
- Not suitable for structural cracks

Application Scenarios

Structural Crack Repair

Best Choice: Mechanical Packers
Reason: Deep penetration and strong bonding are required

Tunnel Leak Sealing

Best Choice: Mechanical Packers
Reason: High pressure and thick concrete structures

Non-Structural Surface Cracks

Best Choice: Surface Packers
Reason: Quick repair, shallow injection

Heritage or Sensitive Structures

Best Choice: Surface Packers
Reason: Avoid drilling damage

Grouting Material Compatibility

Material	Mechanical Packers	Surface Packers
PU (Polyurethane)	✅ Excellent	✅ Good
Epoxy	✅ Required	⚠️ Limited

Key Insight:
Epoxy requires high pressure and deep penetration → mechanical packers are strongly recommended.

Learn more about:

- PU Grouting Materials
- Epoxy Injection Systems

Selection Guide (Professional Decision Rule)

Choose Mechanical Packers if:

Crack depth > 50 mm
Structural repair is required
High-pressure injection is needed
Epoxy material is used

Choose Surface Packers if:

Crack is wide but shallow
Injection is low-pressure
Drilling is not allowed
Repair is temporary

System Efficiency Considerations

How to choose injection packers

Mechanical packers work best with:

High-pressure injection pumps
Professional injection systems

Surface packers are suitable for:

Manual tools
Low-pressure systems

Explore related equipment:

Injection Pumps
Injection Accessories

Field-Proven Engineering Tips

Drill at a 45° angleto intercept cracks effectively
Maintain 10–30 cm spacing between packers
Inject from the lowest point upward

Benefits:

Better grout distribution
Reduced material waste

Improved sealing quality

Common Mistakes to Avoid

Using Surface Packers for Deep Cracks

→ Leads to surface-only sealing and leakage return

Avoiding Drilling to Save Time

→ Results in poor long-term performance

Incorrect Mechanical Packer Installation

→ Causes pressure loss and sealing failure

Quick Summary

Mechanical packers → deep, high-pressure, structural repair
Surface packers → shallow, low-pressure, quick sealing
Epoxy injection → requires mechanical packers
PU injection → both options possible depending on depth

Professional Rule:
Mechanical packers are the default choice unless drilling is restricted.

FAQ

Which is better: mechanical or surface injection packers?

Mechanical packers are better for most applications because they provide deeper penetration and higher pressure resistance.

Can surface packers be used for structural crack repair?

No, they are not recommended due to limited depth and sealing strength.

Do surface packers require drilling?

No, they are installed directly on the surface.

When should surface packers be used?

For shallow cracks, low-pressure injection, or when drilling is not feasible.

Are injection packers reusable?

No, all injection packers are single-use in professional applications.

Final Engineering Recommendation

For most professional projects (90%+):
Mechanical injection packers are the best choice

Use surface packers only when:

Drilling is not feasible
Crack depth is limited

Need Help Choosing the Right Packers?

Explore:

Mechanical Injection Packers
Surface Packers

Contact our team for project-specific recommendations

Related Products

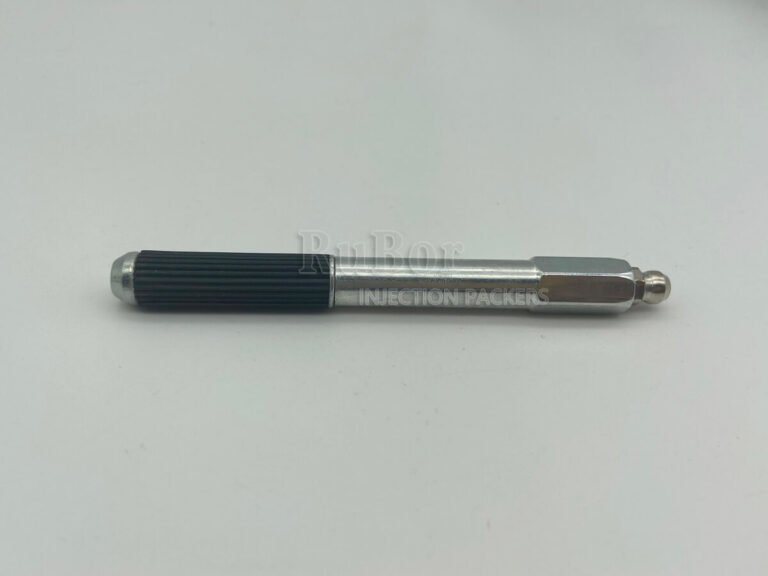

10 mm Steel Injection Packers for Crack Repair

10mm Steel Injection Packers

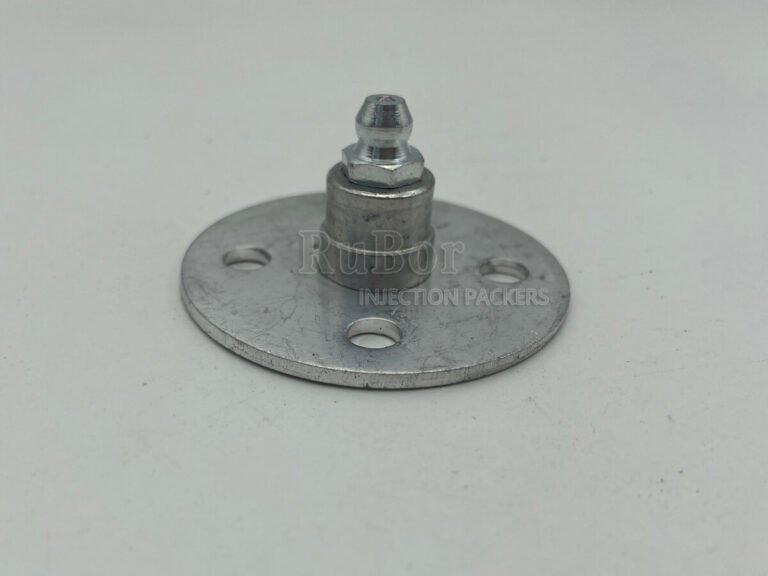

Surface Injection Packers for Low Pressure concrete epoxy injection

Adhesive Packers

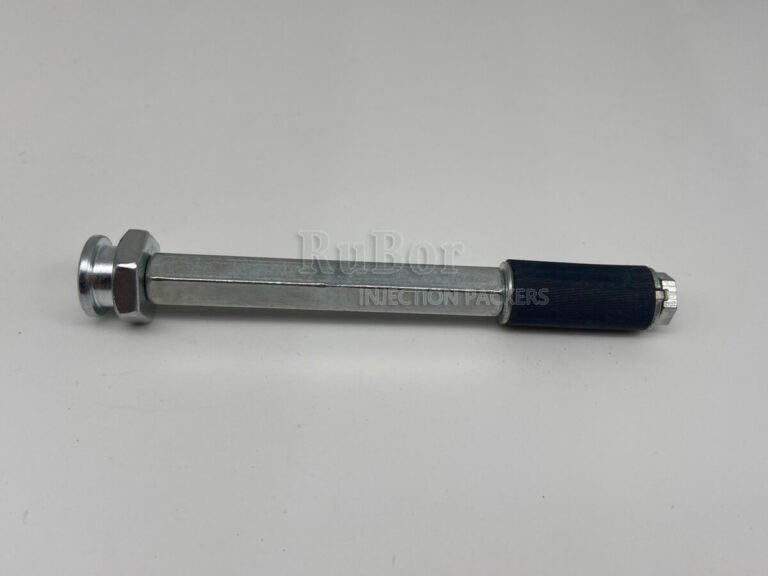

13 mm Steel Injection Packers for Concrete Crack Repair Epoxy Injection

13mm Steel Packers

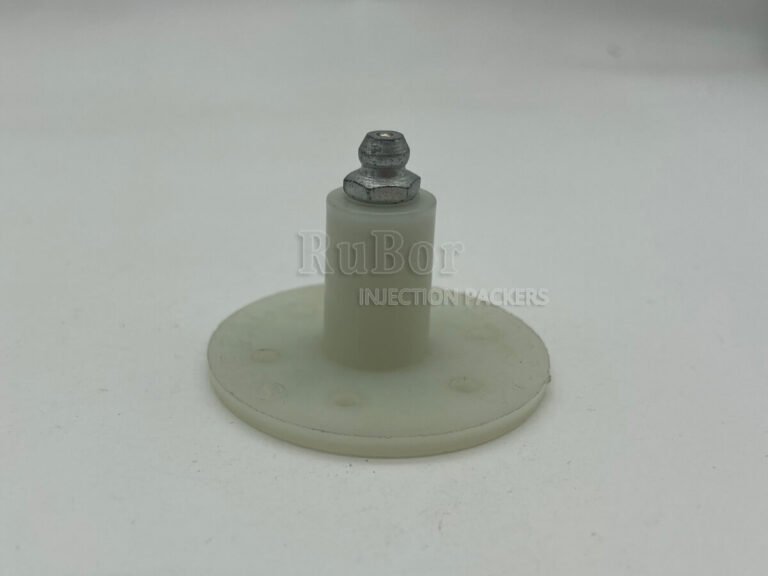

Surface Injection Packers for Crack Injection
